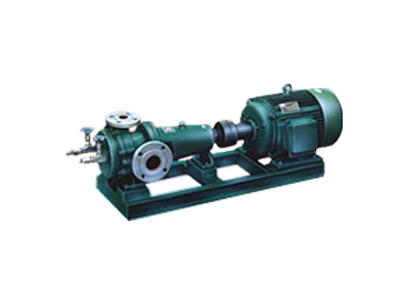

WIN保温泵



WIN保温泵采用本厂专利径向进口,顶端出口,机械密封为负压装置。适用于化肥厂输送保温液用,也可用于输送悬浮颗粒物的其他腐蚀性液体,介质的温度允许-20℃~180℃。泵前侧有保温夹套,可允0.59Mpa,170℃的蒸气保温,泵过流部分材质有ZG1Cr18Ni9Ti ,ZG1Cr18Ni12MO2Ti,也可根据用户需要,选用其它材料。
WIN型保温泵的性能范围(按设计点):流量:6.3~100m3/h   扬程:  泵的最高工作设计压力为1.6Mpa

性能参数表



型号流量
m3/h
扬程
m
转速rpm功率Nkw)效率(%)允许汽蚀余量m
轴功率电机功率
WIN50-32-1256.3514500.19按液体的比重和
粘度选用
451
WIN50-32-16080.3440
WIN50-32-20012.50.6533
WIN50-32-250201.2727
WIN65-50-12512.5514500.31551.2
WIN65-50-16080.5351
WIN65-40-20012.50.9346
WIN65-40-2502017539
WIN65-40-315323.333
WIN80-65-12525514500.53641.4
WIN80-65-16080.8862
WIN80-50-20012.51.4957
WIN80-50-250202.56953
WIN80-50-315325.06743
WIN100-80-12550514500.92741.7
WIN100-80-16081.5869
WIN100-65-20012.52.568
WIN100-65-250204.363
WIN100-65-315327.558
WIN125-100-20010012.514504.66732.2
WIN125-100-250207.5672
WIN125-100-3153212.8268
WIN125-100-4005022.6960
WIN150-125-25020020145014.1773.2
WIN150-125-3153223.275
WIN150-125-4005038.970
WIN200-150-25040020145026.9814.5
WIN200-150-3153244.179
WIN200-150-4005069.878



型号流量
m3/h
扬程m转速rpm功率Nkw)效率(%)允许汽蚀
余量m
轴功率电机功率
WIN50-32-12512.52029001.33按液体的比重和
粘度选用
511.8
WIN50-32-160322.3746
WIN50-32-200504.3639
WIN50-32-250808.2533
WIN65-50-125252029002.2622
WIN65-50-160323.8257
WIN65-40-200506.5552
WIN65-40-2508011.8446
WIN65-40-31512521.839
WIN80-65-125502029003.95692.4
WIN80-65-160326.567
WIN80-50-2005010.863
WIN80-50-2508019.1157
WIN80-50-31512536.2147
WIN100-80-1251002029007.074773.2
WIN100-80-1603211.973
WIN100-65-2005018.972
WIN100-65-250803268
WIN100-65-31512554.962
WIN125-100-20020050290035.4774.5
WIN125-100-2508058.175
WIN125-100-31512597.2670
